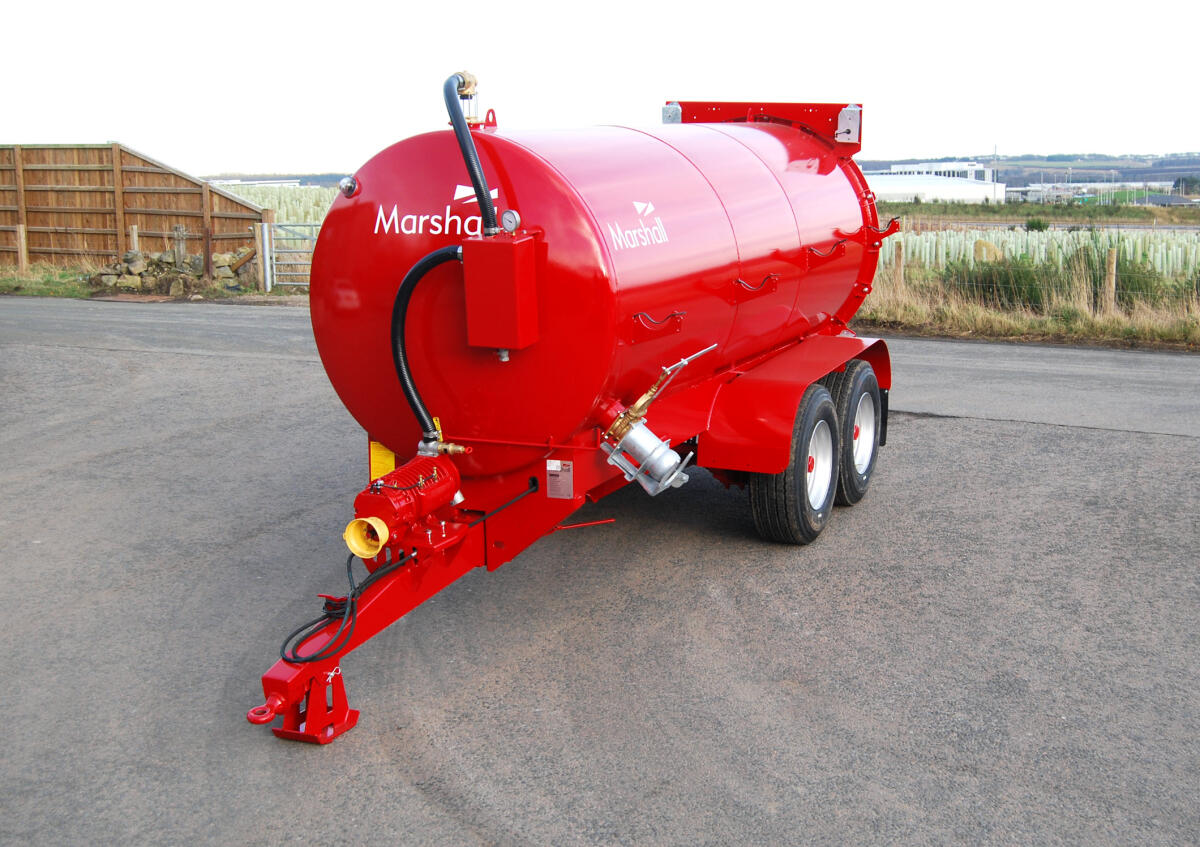

ST-3000
- Capacity 3,000 Gallons / 13,640 Litres
- Standard Equipment 10 Stud Axle - 120mm(420x180) Hydraulic Brakes Colour - Marshall Red Spring Drawbar Dual Lights Swivel Hitch 6" Suction Hose - 20ft Mudguards Standard PTO Shaft Commercial Springs LED Lights Quick At. Coupling - N/S Front 6" Hose Carrier - N/S 6" Port - O/S Rear 6" Port - N/S Rear 6" Port - O/S Front 6" Port - N/S Front 12,000ltr Pump NEW 385-65 x 22.5 (10 Stud)
Basic Price £29,600
ST-3000
- Capacity 3,000 Gallons / 13,640 Litres
- Standard Equipment 10 Stud Axle - 120mm(420x180) Hydraulic Brakes Colour - Marshall Red Spring Drawbar Dual Lights Swivel Hitch 6" Suction Hose - 20ft Mudguards Standard PTO Shaft Commercial Springs LED Lights Quick At. Coupling - N/S Front 6" Hose Carrier - N/S 6" Port - O/S Rear 6" Port - N/S Rear 6" Port - O/S Front 6" Port - N/S Front 12,000ltr Pump NEW 385-65 x 22.5 (10 Stud)
Basic Price £29,600
Overview
Overview of the ST-3000
Features at a Glance
- A quality 12,000L Hertell pump
- Standard 6mm steel tank (ensures a long lifespan)
- Standard galvanized, quick attach 6” side valve (with interchangeable mounting positions - one each corner of the tanker)
- Liquid filled 75mm gauge (allows for accurate pressure readings)
- High-level Dual LED Lights
- Integral design chassis (ensures no fatigue that can produce premature cracking)
- Tanks that hold the stated capacity (even the LGP cut in tanks are increased in size to compensate for the cut out part)
- Dual Slurry Traps
- Standard adjustable spring drawbar for a smoother ride on the road
- Standard swivel hitch for reduce wear and safer operation.
- Shot-blasted and finished with a two-pack undercoat and topcoat for improved protection and lifespan
- Genuine Marshall Spares – a full collection of spares are available for all models in the range
All Marshall tankers have an integral chassis design to reduce stress on the tank and prevent premature cracking. In addition the tank is constructed from 6mm steel, which improves durability and increases the lifespan of the tanker. The tank has also been measured to ensure that it will hold its stated capacity and customers receive exactly what they paid for. The ST-3000 is also fitted with a standard 6” quick attach side valve that is interchangeable with three other mounting position, allowing flexibility when loading. The standard 12,000L Hertell pump provides quick and efficient loading of the tanker, while combining reliability and durability.
The ST-3000 is also fitted with hydraulic brakes and high-level dual lights, which are fully integrated, as standard. This ensures it is safe to operate and complies with all current health and safety legislation. The swivel type drawbar hitch is also fitted as standard to reduce hitch wear and help protect the tractor operator in the event of a tanker rollover. In addition 10 stud 420 x 180 commercial axles are standard on this model with a 24-ton mono-leaf spring set.
The ST-3000 is an excellent tandem axle model with an impressive standard specification, robust design and huge carrying capacity to ensure that there is a Marshall tanker for every job.
Features
Every model has a 6mm thick steel tank that is rolled and fully-welded by a sub-arc welder to ensure a consistent and robust finish. Inside the tank there are baffles to ensure material is transported safely and reinforcing rings to further enhance the tanks strength. It is also important to note that all our tanks hold the stated capacity; even our LGP cut in tanks are increased in size to compensate for the cut-out part.
The overall rigidity of our tanker range is boosted by our integral chassis. which supports the tank to reduce fatigue and prevent premature failure.
Every model has hydraulic brakes as standard with the option to upgrade to air brakes. Our ST/2000 model upwards has 420 x 180 10 stud commercial axles and spring drawbars as standard to ensure safe movement on the road. Dropped axles are also standard on these larger models to lower the centre of gravity and improve stability.
Lights are also standard on ST-1200 to ST-1800 models with the option to upgrade to LED lights and fit a LED beacon.
LED lights are standard on the ST-2000 and upwards.
Either an 8,000ltr, 10,000ltr or 12,000ltr Hertell pump is standard on our tankers to ensure fast filling and discharging of material. There is also an option to fit a hydraulic drive pump or Garda pump depending on the application of the tanker.
The entire range benefits from our dual protection system. The first line of protection is a specially designed double-ball set-up in the tank that stops the vacuum once it has reached a certain level. If any froth should manage to by-pass this system then there is a slurry trap in the large syphon box to catch any residue.
Every model has a hand operated side valve as standard, which can also be positioned on the rear to allow for easy filling. It is also possible to specify a different position for filling as an option.
All our models have a liquid filled 75mm gauge to provide accurate pressure readings and ensure safe loading of the tank. Furthermore two sight-glasses at the front and rear of the tanker allow the operator to know when the tank is full.
Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish.
Every machine is finished our latest Two-Pack-Paint and Undercoat, this is recognized as one of the best ways to paint an agricultural machine in the industry.
Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries,and a number of other haulage partners.
Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives you peace of mind when buying a Marshall that you will be properly supported well into the future.
Specifications
Compare specifications
- Basic Price
- [[ key ]]
- Optional Equipment
- [[ key ]]
-
[[ product.title ]]
- [[ product.price ]]
- [[ key ]]
- Optional Equipment
- [[ key ]]
| Basic Price | [[ selectedProduct['price'] ]] |
|---|---|
| [[ standardLabels[index] ]] | [[ spec ]] |
| Optional Equipment | |
| [[ optionalLabels[index] ]] | [[ spec ]] |
Gallery
Owner's Info
Marshall Logo in a jpeg file format.
Operating and Safety instructions for tanker models: ST1200, ST1400, ST1600, ST1800, ST2000, ST2300, ST2550 and ST3000.
Marshall Trailers Brochure 2026
Retro Fit
Retro Fit Concept
Retro fitting involves upgrading existing equipment with new features or components to enhance performance and functionality.
At Marshall Trailers, we offer a range of retro fit solutions to improve your trailer's capabilities.
Whether you're looking to enhance safety, increase load capacity, or add modern conveniences, our retro fit solutions are designed to meet your specific needs.
560-60 x 22.5 (10 Stud) B Wh
These tyres excel at both on-road performance and off-road performance and are the best all-round tyres we offer. When this option is selected mudguards are fitted automatically. Please note all prices are in place of standard tyres.
560-45 x 22.5 (10 Stud) Wheels
These tyres excel at both on-road performance and off-road performance and are the best all-round tyres we offer. When this option is selected mudguards are fitted automatically. Please note all prices are in place of standard tyres.
Hitch Lock
Allows the machine to be secured against theft. Padlock is not included.
Dribble Bar - 6m
The tanker comes fitted with a 6m dribble bar, allowing slurry to be more effectively applied.
Dribble Bar - 7.5m
The tanker comes fitted with a 7.5m dribble bar, allowing slurry to be more effectively applied.
90 Degree Bend
Angles the slurry discharge to the side of the tanker for use in wet conditions.
Hand Op. Valve - N/S Rear
Assists with loading of the tanker. Positioned on the near-side, rear of the tanker.
Ext. Hyd. Op. Valve
Extra hydraulically operated 6" valve. This is in addition to the standard hydraulic valve that controls the flow of slurry to the rear spread plate.
Wash Down Hose - Bauer Attach
A useful hose attachment for general washing down jobs.
Quick At. Coupling - N/S Rear
Allows the hose to be more easily attached to the tanker. Please note price includes fitting manual gate valve and quick attach coupling to near-side, rear of tanker.
Quick At. Coupling - O/S Front
Assists with loading of the tanker. Positioned on the off-side, front.
Quick At. Coupling - O/S Rear
Assists with loading of the tanker. Positioned on the off-side, rear.
Easy-connect c/w Hyd Change OS
A simple and quick way to load your tanker without leaving the tractor. Extend the side grab, drive up to the hose until it enters the grab and then hydraulically pull the hose into place. Only available when filling the tanker from the side valve.
2" Ball Valve - Bauer Attach
This clamps to any 6" male bauer coupling and allows a variety of hoses to be connected.
No Front N/S Valve
Removes the standard near-side front hand operated valve.
60mm Hose - Bauer Attach
This clamps to any 6" male bauer coupling and comes complete with a 60mm hose. Ideal for clearing drains.
6" Suction Hose Mesh Strainer
Prevents stones or other debris from being sucked up during filling.
Hydraulic Pump
Removes the requirement for a PTO shaft, improving safety and removes the possibility of damaging a PTO shaft.
Pump Hydraulic Changeover
Allows the pump to change between pressure and vacuum hydraulically.
LED Worklights
These lights are mounted on the front corner or the chassis facing down either side to provide improved visibility. Operated from a remote key fob.
LED Beacon
Improves the visibility of the machine, particularly important if the machine is to be frequently used on the road.
Number Plate Bracket & Light
Allows your number plate to be better displayed and to be easily changed.
