Overview

Overview of the QM-8

Features at a Glance

The most accurate comparison when buying a trailer is the cost per cu. ft!
All tandem axle models available with springs or split oscillating suspension – with no price difference
All models have full in line and side loading silage panels as standard with silage kit complete with full height silage gate forming the canopy at the rear (eliminating silage catching during discharge.)
Large cubic capacity (enabling the user to not only carry the stated weight but to hold it as well)
Flat floors (no open pressed sections that allow water to prematurely rust out joints)
Protected LED lights which are integrated into the back rail (eliminates any potential damage)
Unique design chassis combines unmatched strength and stability
Front inspection ladder is standard on all QM models
All Marshall silage trailers use our unique hydraulic catches which fit to the rear of the trailer removing any chance of accidental damage from the side
Genuine Marshall Spares – a full collection of spares are available for all models in the range

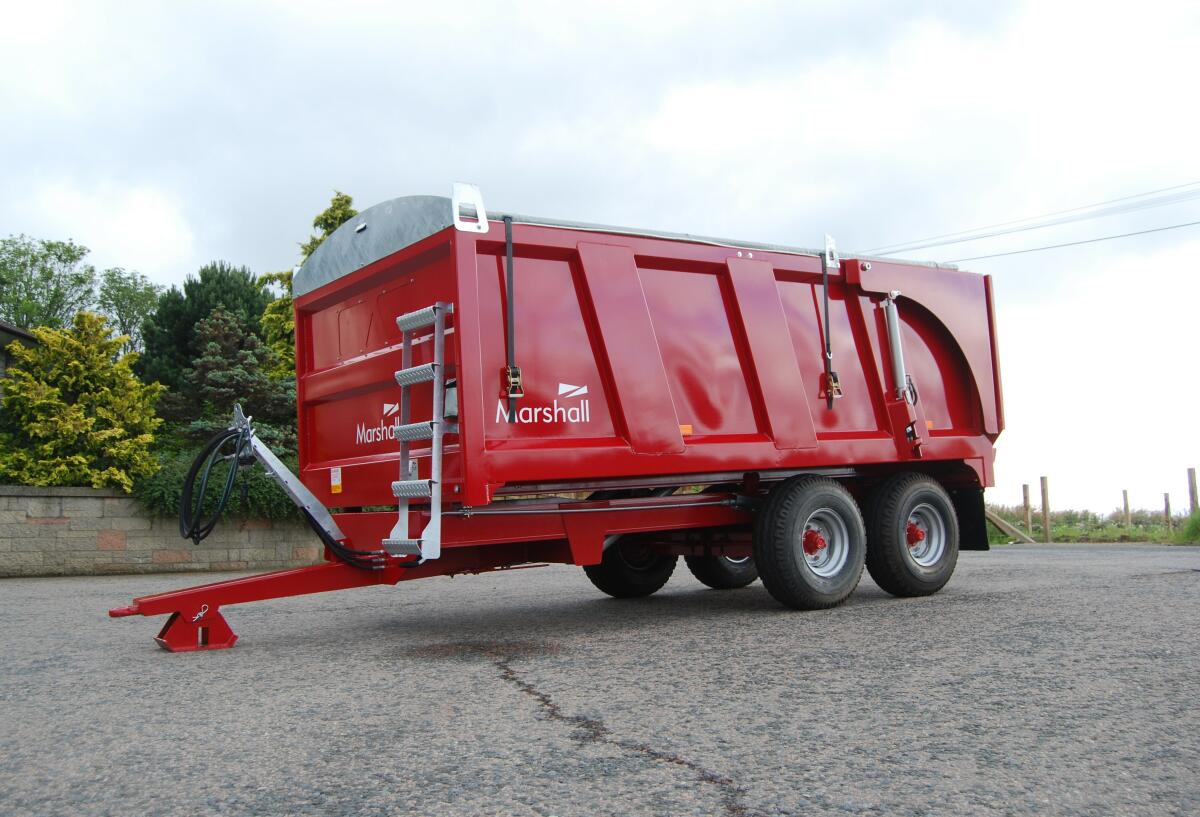

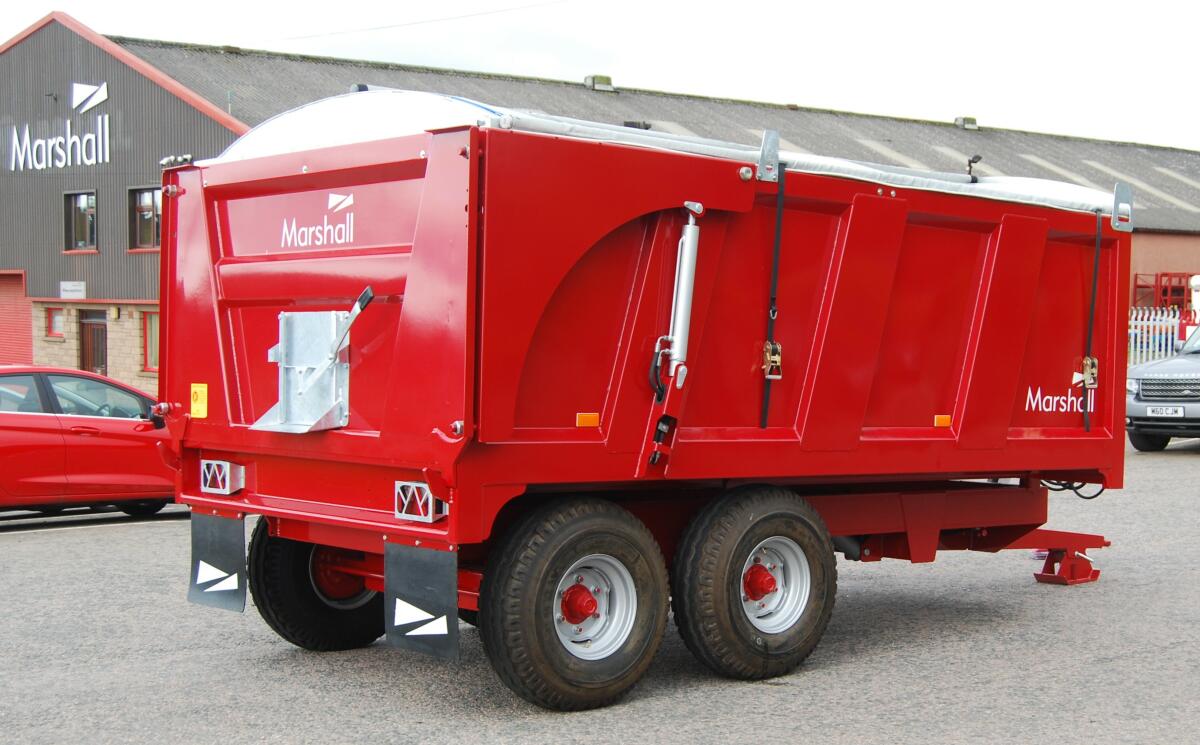

The Marshall QM/8 is an extremely popular trailer in farming areas with narrow roads and lanes. The large cubic capacity of the trailer means it has room to carry a significant load, but remains small enough to easily manoeuvre. The QM/8 also has the advantage of tandem axles, giving the customer the option to spec either rockers or springs as a no cost option. The body is constructed with 3.5mm sides and a 5mm flat floor, complete with a substantial number of spacers and bearers to guarantee durability and strength. The flat floor also prevents premature rusting of the trailer, since there are no joints for water to sit in. In addition to this the body of the trailer is tapered as standard to allow loads to be safely discharged without the risk of them sticking in the trailer.

The chassis of the trailer uses our tried and tested design, developed over 60 years of producing agricultural trailers. It is over-engineered for the weight it is expected to carry, which is the most effective method of ensuring the trailer has a long-life. The tipping points for the body are 25mm in diameter, providing outstanding durability and again reducing the possibility of damage to the trailer when tipping.

The engineering in a Marshall QM/8 has resulted in an effective, practical design that can handle the challenges placed upon it in the modern agricultural industry.

Features

Our QM and QM00 range are both ideal for this type of work. The QM00 range has a marginally larger carrying capacity than the QM range with basic sides.

Both our ranges of monocoque trailers are available with silage sides. The QM range is available with swinging tailgate style sides or silage attachment style sides; the swinging tailgate style sides allow for more capacity, while the silage attachment style sides are quicker to switch between silage and cereal set-ups. Our QM00 range is only available with silage attachment style sides. In 2014 we introduced our new silage attachment style sides that provide increased strength and rigidity thanks to the specially designed internal plate. The improvements do not stop there as the visual appearance of the sides have been modernized.

Our QM range has 4' high sides to minimize the distance crops have to fall during loading. When specified with 560/60x22.5 wheels and a full width front window, our QM range is ideal for rootcrop work.

The floors of the entire range are 5mm thick and the sides are either 3.5mm or 4mm thick, ensuring an extended service life. Every model also benefits from a fully-welded construction with a substantial number of floor and side bearers to improve overall rigidity and strength. The sides of the trailer are also welded on one of our robotic welders to provide an incredible level of finish that cannot be matched by hand-welding.

The QM/11 model upwards uses a unique chassis design that is formed from heavy-duty channels with 8mm or 10mm reinforcing plates stitch welded to the channels. This set-up provides unrivaled strength, while also allowing the chassis to flex when required; if the chassis is too rigid then it can become prone to cracking and premature failure. Almost the entire chassis is now welded on a robot, ensuring perfect welds every time and adding to the overall chassis durability. The chassis design on the QM/16 and QM/1800 models are also further reinforced by an internal lattice work of steel plates, providing a tidy finish combined with the necessary strength.

The tipping points of our QM/6 and QM/8 models use a toughened 24mm bolt and on our QM/11 model upwards, a fully bushed 50mm solid steel bar is used to eliminate any potential weak link in the design. Similarly our QM/11 model upwards also benefit from using a single chrome tipping ram, which had a faster cycle time than traditional twin ram designs increasing efficiency.

Available on all our tandem axle QM models as a no-cost option and available on our QM/6 single axle model as a priced option. Our QM/8, QM/11, QM/12 and QM/1200 models us multi-leaf springs to keep the trailer height down for improved stability, while still providing excellent road performance. On our QM/14 model upwards mono-leaf springs are utilized to handle the increased weights.

Available on all our tandem axle models as a no-cost option. This suspension set-up is more stable than springs as it eliminates lateral movement, while providing a smooth ride when travelling forward. Our rocker tandems are constructed from box-section with a 50mm solid steel bar pivot, that has devlon bushes and grease points to ensure an extended working life span.

Every model in the QM range has hydraulic brakes as standard with the option for air brakes with load sensing and ABS. There is also the option for hydraulic load sensing. Our QM/11, QM/12 & QM/1200 models use 8 stud 350 x 90 axles, with the option to upgrade to commercial axles for high-speed road work. Commercial 10 stud 420 x 180 axles are standard on our QM/14 model upwards; these are the same size of axles that are used on HGVs and provide exceptional braking and high-speed performance.

Lights are standard on all models in the QM range, but there are also various lighting options including; LED lights, high-level LEDs, LED beacons and dual lights. All lights are recessed into the back-rail of the trailer or are fully guarded.

The whole QM range comes with an inspection ladder as standard, which is fabricated from chequered plate and precision welded by our robot welders before being treated with a galvanized finish.

The QM range hydraulic door arms are formed from pressed steel plates to create a sleek and strong design. In addition the arms are now 150mm longer to provide increased clearance when discharging the load, this is particularly useful when tipping silage or maize. The hydraulic door option is standard on the QM/12 model upwards and optional on our other models.

This intelligent design has resulted in our new drawbars being incredibly strong, while also creating a modern, sleek looking finish. This is only possible due to the advanced fabrication equipment we use; two 8mm plates are folded together by our CNC presses and overlapped before our robotic welders complete the process by welding the parts together.

The simple idea of this new design approach and concept is to allow 80% of our optional extras to be retrofitted to our product ranges without the need for any fabrication or paint rectification. The QM range is naturally designed around this idea and the benefits are huge! It allows us as manufacturers to stock basic trailers that can be adapted to meet customer demands for improved delivery, it allows dealers to supply the correct specification of trailer to customers faster and for the farmer to add to the trailers' functionality and extend its lifespan. The best example of this is the ability to add air brakes to the QM range, so if a tractor is upgraded to air brakes the trailer can be made to match without the need to change the entire trailer!

The introduction of robotic welders to our production line gives the Marshall QM range a unique and unrivalled level of finish and consistency. The chassis, drawbar, ram anchors and sides are all welded robotically; taking the quality far beyond what a man can achieve. This production and design method will continue to be integrated into our ranges throughout the coming years.

Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish.

Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners.

Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives you peace of mind when buying a Marshall that you will be properly supported well into the future.

Specifications

Compare specifications

Basic Price
[[ key ]]
Optional Equipment
[[ key ]]

[[ product.title ]]
[[ product.price ]]
[[ key ]]
Optional Equipment
[[ key ]]
[[ product.title ]]

Basic Price	[[ selectedProduct['price'] ]]
[[ standardLabels[index] ]]	[[ spec ]]
Optional Equipment
[[ optionalLabels[index] ]]	[[ spec ]]

Download specification sheet

Owner's Info

Retro Fit

Retro Fit: 1.hrs

Cost per unit: £75.00

Allows your number plate to be better displayed and to be easily changed.

LED Beacon

Image coming soon

Part No: 2404

Retro Fit: 1.hrs

Cost per unit: £145.00

Improves the visibility of the machine, particularly important if the machine is to be frequently used on the road.
