Overview

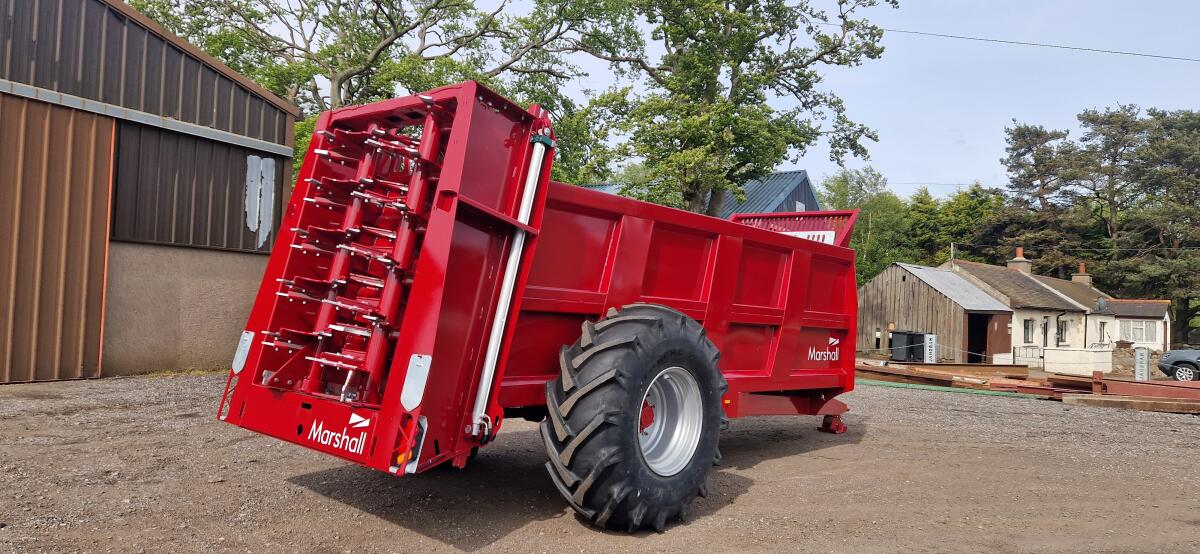

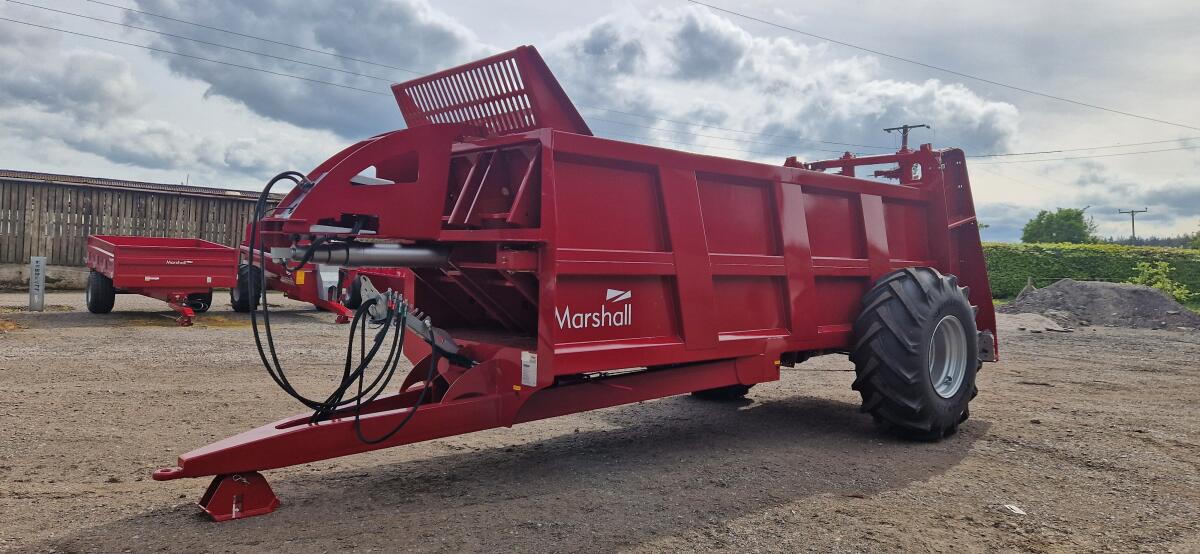

Overview of the VES-2500

Features at a Glance

No floor chains (no problems)
Robust purpose built one piece gearbox (no breakages)
10mm thick step design rear beaters (long life)
Fully reversible hardened tips (reduces wear)
Hydraulic pusher ram (heart of the machine)
Holds and spreads slurry (liquid tight seal)
Compact design with axle position as far back as possible (increased traction & versatility)
520 mm minimum ground clearance (VES-1500)
Exceptional residual value (lowers cost per ton spread)
Genuine Marshall Spares – a full collection of spares are available for all models in the range

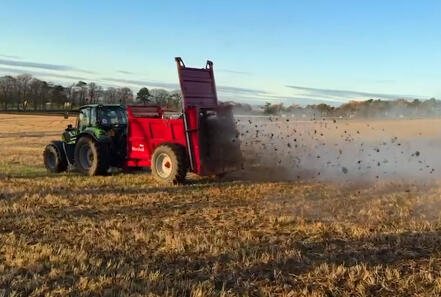

The whole concept behind the Vesuvius Vantage (Rear Discharge Spreader) was based on the premise that a spreader was required in the marketplace that should be virtually maintenance free. A tall order but one we have certainly achieved! The Vesuvius Vantage requires a daily visual check of the gearbox oil level and greasing by means of five remote points. Quite simply that is all that is required.

This was made possible by developing a unique design that uses a hydraulic ram to push the load to the beaters, eliminating unreliable and troublesome chains that are a notorious weakness of rear-discharge spreaders. The pushing rams speed is fully controllable due to the mechanical device that regulates the flow of oil to the ram as it extends, ensuring a constant speed of discharge.

This clever design also offers a number of other advantages over traditional rear discharge spreaders. The removal of a chain drive system allows a deeper, more compact design that has a lower centre of gravity making it an ideal choice for areas with narrow roads or for spreading on hills. This gain is not at the expense of ground-clearance with all machines sporting an excellent 520mm of ground clearance. The removal of the chain drive gearbox also allows the axle to be placed further back on the machine, reducing weight transfer beyond the axle during spreading that could cause instability of the towing vehicle.

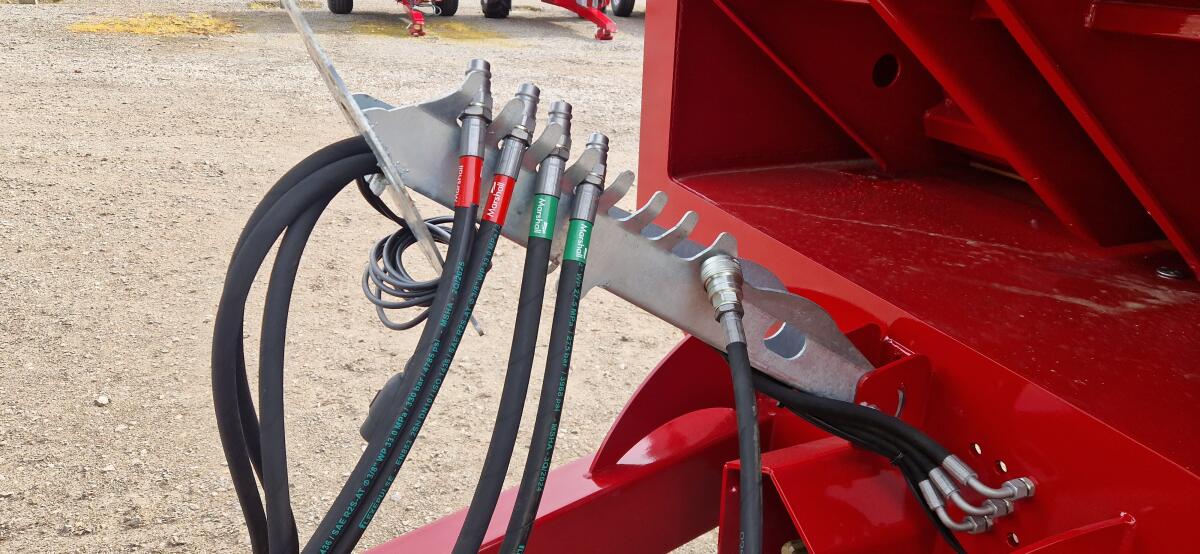

Operational wise the design is extremely easy to use. The speed of discharge is controlled by our mechanical device which reduces the oil flow as the ram moves forward enabling the operator to simply engage the spool valve prior to spreading.

Features

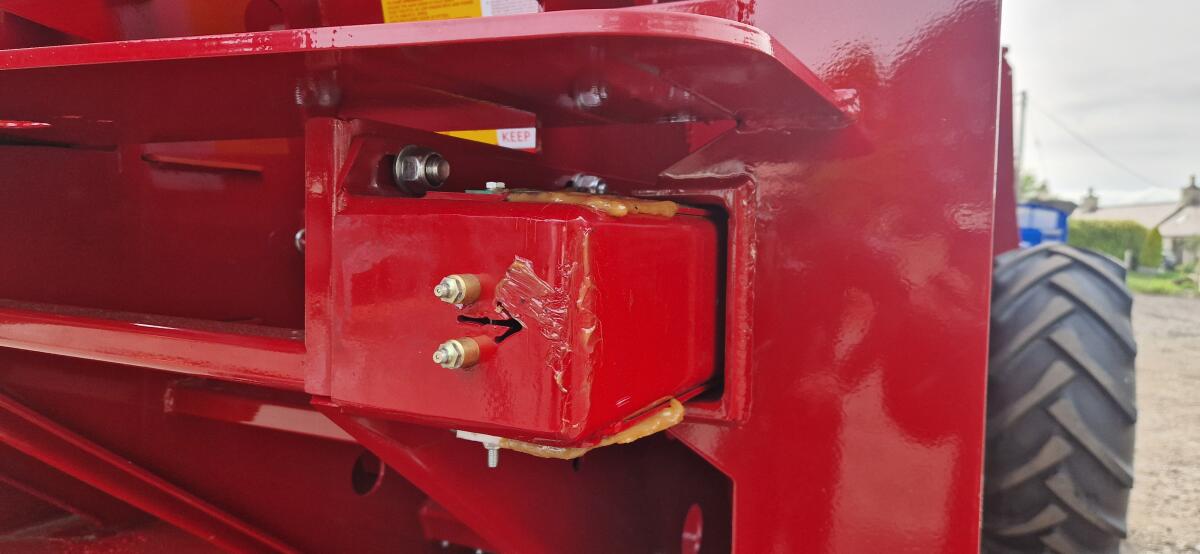

The only regular maintenance required on our VES range is to grease the bearings via remote grease points and to check the oil level in the gearbox.

Every model utilizes a 4 stage, chrome ram that has been specifically designed and produced for our VES range for incredible reliability compared to traditional floor chains.

The removal of floor chains allows our VES range to have a shorter, deeper body that increases capacity and improves manoeuvrability.

The VES range also has improved ground clearance due to the removal of floor chains; 520mm minimum ground clearance on the VES/1500 model. In addition the axle on all our models can be placed further back since there is no gearbox required to drive the floor chains, this improves traction and reduces weight transfer when spreading.

The VES range benefits from a completely sealed box, there are no gaps for the floor chains. Combined with the standard slurry door on all models means the VES range can hold and spread slurry.

Every model uses the same robust 160hp purpose built, one piece gearbox to prevent breakages. The gearbox is also fully protected by an armoured plate underneath the rear of the spreader.

The entire range has two layers of protection to ensure the spreader is not damaged. Specially formulated polyurethane couplings are used to connect the beaters to the gearbox to reduce the impact of any shock-loads on the drive line and protect the gearbox. In addition every model is protected by a 10mm shear bolt in the PTO shaft.

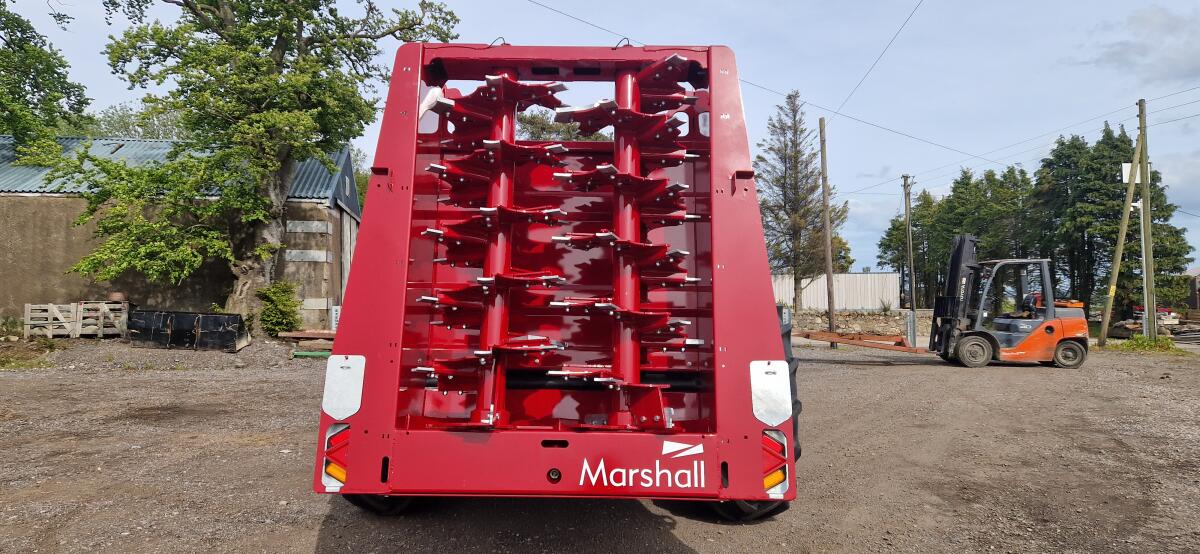

The VES range uses fully-balanced hand-built beaters that are constructed in-house using 12mm steel plates for maximum strength. The beater tips are also constructed from 12mm steel plates and are fully reversible to double the life-span of each tip. It is also important to note that all the tips are secured in sockets to prevent premature loss.

Since our VES range commenced production more than 10 years ago, its second-hand value has proven to hold up extremely well. This is mainly due to the ram ejection system compared to a floor chain system, which is prone to wearing over time and is always a worry on a used machine.

Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish.

Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners.

Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives you peace of mind when buying a Marshall that you will be properly supported well into the future.

Specifications

Compare specifications

Basic Price
[[ key ]]
Optional Equipment
[[ key ]]

[[ product.title ]]
[[ product.price ]]
[[ key ]]
Optional Equipment
[[ key ]]
[[ product.title ]]

Basic Price	[[ selectedProduct['price'] ]]
[[ standardLabels[index] ]]	[[ spec ]]
Optional Equipment
[[ optionalLabels[index] ]]	[[ spec ]]

Download specification sheet

Owner's Info

Retro Fit

Retro Fit Concept

Retro fitting involves upgrading existing equipment with new features or components to enhance performance and functionality.

At Marshall Trailers, we offer a range of retro fit solutions to improve your trailer's capabilities.
Whether you're looking to enhance safety, increase load capacity, or add modern conveniences, our retro fit solutions are designed to meet your specific needs.

23.1 x 26 (10 Stud) Wheels

Image coming soon

Part No: 0030

Retro Fit: 2.hrs

Cost per unit: £1200.00

These tyres provide reduced ground compaction and improve handling in wet conditions. Please note all prices are in place of standard tyres. When fitted the overall machine width will be 9' 7".

Wide Angle PTO Shaft

Image coming soon

Part No: 2002

Retro Fit: .25hrs

Cost per unit: £540.00

Replaces the standard PTO shaft, and allows the machine to turn tighter while still operating.

Hydraulic Light Covers

Image coming soon

Part No: 2401

Retro Fit: 3.hrs

Cost per unit: £395.00

Allows the lights on the machine to be covered without leaving tractor. They operated when the slurry door is opened or closed.

LED Beacon

Image coming soon

Part No: 2404

Retro Fit: 1.hrs

Cost per unit: £145.00

Improves the visibility of the machine, particularly important if the machine is to be frequently used on the road.
