Overview

Overview of the S-2

Features at a Glance

Large capacity
Fully welded construction eliminates rust traps
Fixed headboard (ensures a rigid body)
Fully braced hinge points (eliminates cracking of material)
Genuine Marshall Spares – a full collection of spares are available for all models in the range

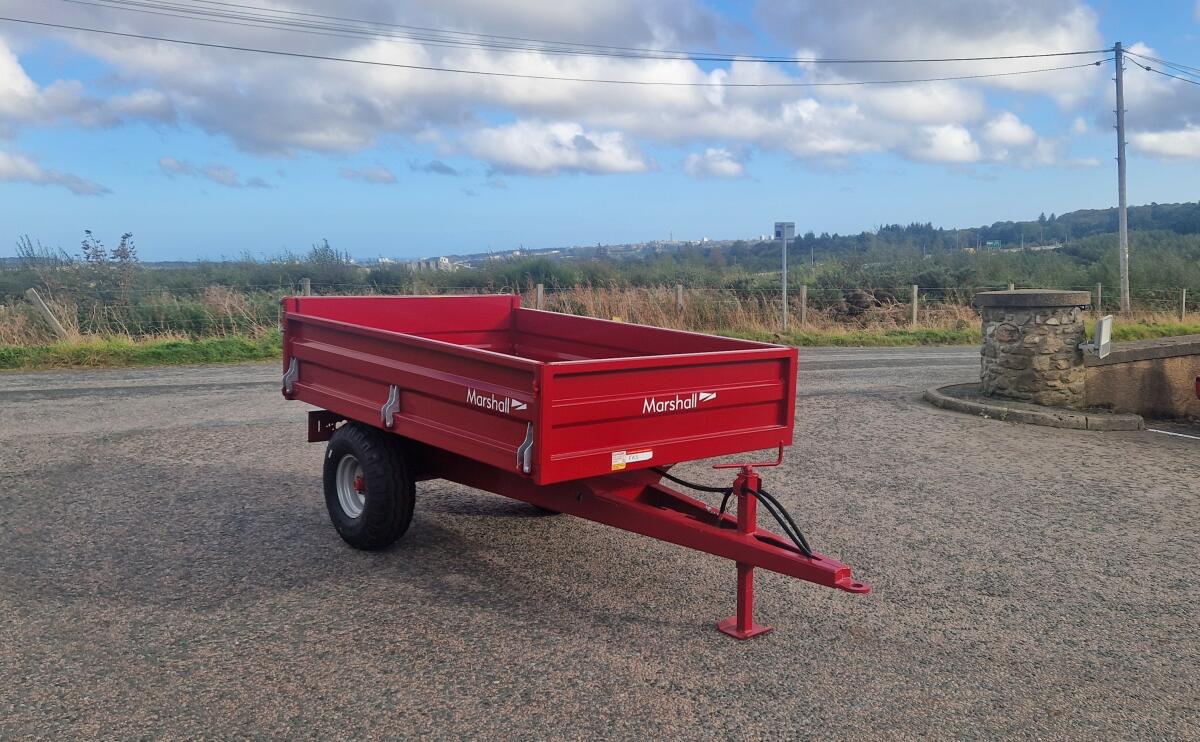

The S/2 drop side trailer is perfectly sized for use in the leisure industry, in gardens or on smallholdings. However it is still built to Marshall Trailers’ high, exacting standards to guarantee durability and functionality.

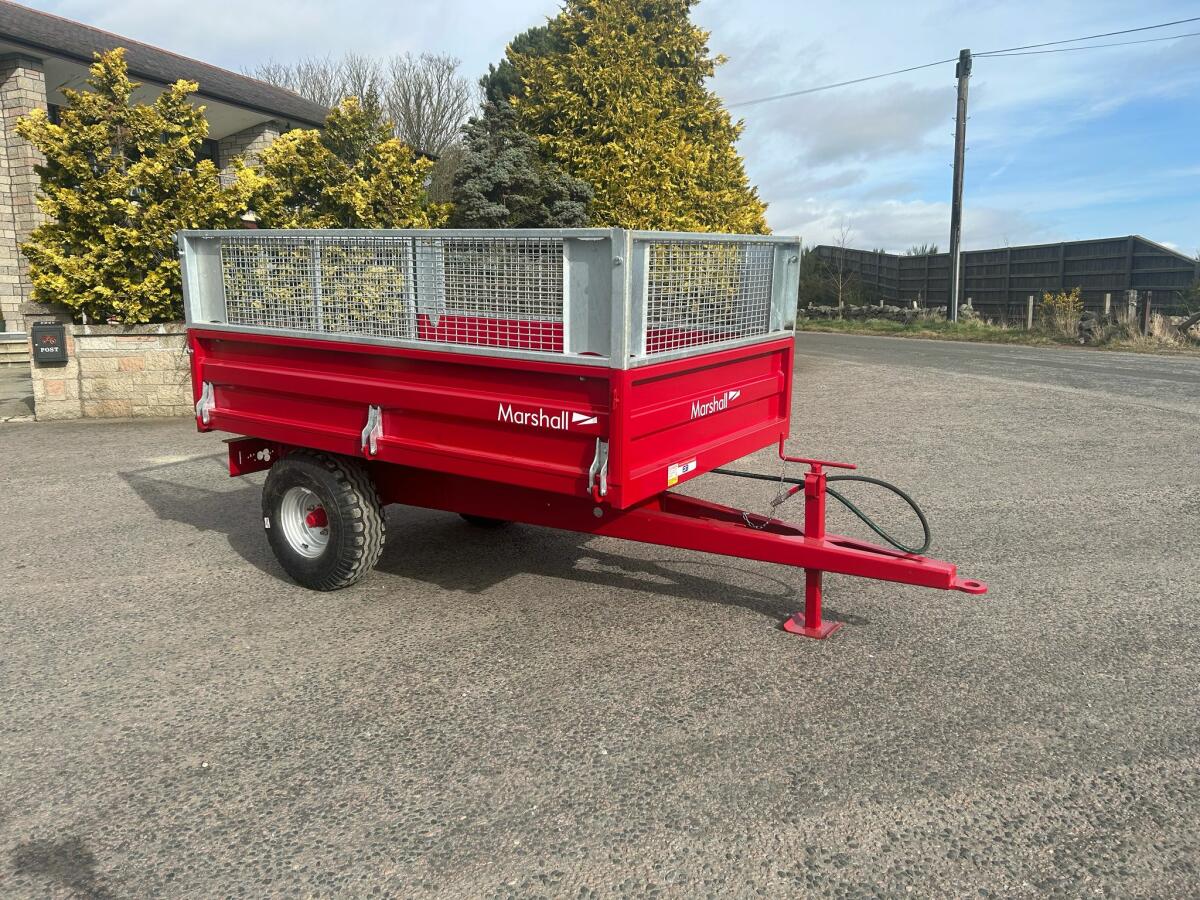

The drop side design provides excellent versatility, allowing the trailer to be used as a flat-bed or a proper trailer. This drastically increases the jobs this trailer can be used for, whether it is moving pallets, small machines, sand or grass; it really can handle all jobs. The S/2 also has the option of mesh sides, which further improves its versatility and makes it an ideal product for the leisure industry.

The body of the S/2 is built from 2.5mm steel, which is the perfect blend between strength and manageability; the sides still have to be easily removable. The hinge points for the sides are also reinforced to prevent cracking or twisting under heavy loads. To improve rigidity the trailer also has a fixed headboard, reducing flexing during loading and transport.

The trailer chassis utilises our tried and tested design developed over 60 years of trailer manufacturing, and provides exceptional strength. The S/2 is also fully-equipped with a hydraulic tipping ram, improving its efficiency and practicality.

Overall these features ensure the S/2 is a proper trailer and not a cheap, basic design that cannot carry out the simplest jobs effectively.

Features

Available on all models; these sides simply bolt on to the trailer. They provide an increased capacity for light loads such as leaves and grass.

Lights are standard on our S/4 model upwards and optional on our S/2 model. The standard light units fitted are commercial grade, and sealed to prevent water damage. In addition it is also possible to upgrade to LED lights and LED beacons are available as an option for all models.

This production technique increases strength and rigidity without adding significant weight, ensuring that the side panels can safely and easily be handled or removed.

Every trailer in our drop-side range has a fixed headboard as standard. This increases torsional rigidity to reduce flexing when the trailer is being used.

Our whole drop-side range uses the same hinge points, which are reinforced to stand up to the constant opening and closing action drop-side trailers have to endure.

No compromises are made in the construction of our trailers, with every model utilizing a fully welded construction. This provides two major benefits; the overall durability of the trailer is increased and there is less opportunity for water to sit and cause rust.

Our smaller models use a fully-welded channel chassis that provides unmatched strength while keeping weight down. Our S/85 and S/10 models use a square chassis configuration to improve stability and reduce flexing when loading. In addition our S/10 model also benefits from a further strengthened chassis, which employs an 8mm thick reinforcing plate over the front of the chassis members to provide incredible rigidity.

Our Whole drop-side range comes complete with hydraulically operated brakes as standard; the only exception is our S/2 model, which has the option to fit hydraulic brakes. The size of the brakes on our drop-side range are also more then acceptable; providing braking efficiency in excess of the current legal requirements.

Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish.

Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners.

Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives you peace of mind when buying a Marshall that you will be properly supported well into the future.

Specifications

Compare specifications

Basic Price
[[ key ]]
Optional Equipment
[[ key ]]

[[ product.title ]]
[[ product.price ]]
[[ key ]]
Optional Equipment
[[ key ]]
[[ product.title ]]

Basic Price	[[ selectedProduct['price'] ]]
[[ standardLabels[index] ]]	[[ spec ]]
Optional Equipment
[[ optionalLabels[index] ]]	[[ spec ]]

Download specification sheet

Owner's Info

Retro Fit

Retro Fit Concept

Retro fitting involves upgrading existing equipment with new features or components to enhance performance and functionality.

At Marshall Trailers, we offer a range of retro fit solutions to improve your trailer's capabilities.
Whether you're looking to enhance safety, increase load capacity, or add modern conveniences, our retro fit solutions are designed to meet your specific needs.

18" Mesh Sides

Image coming soon

Part No: 0502

Retro Fit: 2.hrs

Cost per unit: £576.00

These sides increase capacity of the trailer, and are ideal for carrying leafs or other bulky materials.

26.0 x 12 (5 Stud) Wheels

Image coming soon

Part No: 0002

Retro Fit: .5hrs

Cost per unit: £385.00

These tyres reduce the ground compaction of the trailer; ideal in the groundcare industry. Please note all prices are in place of standard tyres.

Hitch Lock

Image coming soon

Part No: 1203

Retro Fit: .25hrs

Cost per unit: £98.00

Allows the machine to be secured against theft. Padlock is not included.

Trailer Cover

Image coming soon

Part No: 1601

Retro Fit: 1.hrs

Cost per unit: £245.00

A simple 640g PVC cover to protect grain or other valuable loads.

Rear Ramps

Image coming soon

Part No: 2601

Retro Fit: 1.hrs

Cost per unit: £850.00

Aluminium ramps that can carry 6.8 tons, suitable for loading small machines.

Number Plate Bracket & Light

Image coming soon

Part No: 2402

Retro Fit: 1.hrs

Cost per unit: £75.00

Allows your number plate to be better displayed and to be easily changed.

LED Beacon

Image coming soon

Part No: 2404

Retro Fit: 1.hrs

Cost per unit: £145.00

Improves the visibility of the machine, particularly important if the machine is to be frequently used on the road.

Lights

Image coming soon

Part No: 2403

Retro Fit: 1.hrs

Cost per unit: £181.00

Lighting is fitted to the trailer allowing it to be used legally on the road.

LED Lights

Image coming soon

Part No: 2405

Retro Fit: 1.hrs

Cost per unit: £326.00

Provides improved visibility compared to standard lighting options.
