BC-32-TAN

Basic Price £16,150

Price & Configure

BC-32-TAN

Basic Price £16,150

Price & Configure

Overview

Overview of the BC-32-TAN

Features at a Glance

  • Durabar non slip floor
  • 6mm folded side rails complete with 5/8" rope hooks and dedicated ratchet strap points
  • Rolled chanel, square design chassis (eliminates the potential of material fatigue due to flexing)
  • Rigid 21” fixed headboard (allows harvest ladders to be held rigidly and increases overall rigidity)
  • Standard galvanized harvest ladders, with an adjustable rear ladder.
  • Standard spring drawbar provides a smooth ride for the operator.
  • The quality split oscillating rocker tandem with its Devlon bushes only adds to the overall level of stability required for this type of work; spring suspension is also offered as a no cost option
  • "Dealer Fit Ready" - the trailer is designed to allow 80% of the optional extras to be retrofitted.
  • Genuine Marshall Spares – a full collection of spares are available for all models in the range

The Marshall BC/32-Tandem is one of the larger models in our bale trailer range, and provides a massive carrying capacity and excellent Marshall build quality.

It has box section bearers which provides exceptional strength and prevents water from prematurely rusting the trailer. The strength of the trailer is further enhanced by heavy-duty channels forming a square chassis that extends the length of the trailer and also reduces flexing when loading the trailer. Another standard feature that also helps deal with flexing when loading is the 21” headboard, which improves the overall rigidity of the trailer. The BC/32-Tandem uses 8 stud tandem axles as standard and can either be configured with springs or split oscillating rocker tandems as a no cost option.

The standard floor on a BC/32 is a 4mm durabar floor that significantly reduces the potential for loads to move during transport.

The BC/32-Tandem also comes with harvest ladders as standard, ensuring it is capable of carrying all types of load safely from the moment it is purchased. The harvest ladders are galvanised as standard to ensure they do not rust if left outside when not in use. The rear ladder is also adjustable and can be positioned straight or angled depending on the type of bales. On top of this all Marshall bale trailers have hydraulic brakes and lights as standard to comply with all the necessary health and safety legislation. Finally the BC/32-Tandem also includes a spring drawbar as standard, which provides a smooth ride for the tractor operator and prevents the tractor bouncing.

The BC/32-Tandem provides customers with an excellent carrying capacity without being too cumbersome.

Features

BC Chassis Design
Every model benefits from heavy-duty channels to form a square chassis design that improves rigidity and reduces flexing during loading.
BC Bed Design
The entire range have non-slip chequered plate steel floors. The floor bearers are constructed from box-section and interlocked into the 6mm pressed side-rail to improve strength and remove any places where water could sit.
21" Fixed Headboard
Standard on all models, this dramatically increases the rigidity of the trailer.
Harvest Ladders
Standard front and rear ladders on all models, with a galvanized finish to provide effective protection. The rear ladders on all models are adjustable from a straight to an angled position to accommodate different types of bales.
Rope Hooks & Ratchet Strap Points
Every model has heavy duty 5/8" rope hooks along each side and at both the front and the back. The side rails of the entire range are also folded from 6mm steel plate with dedicated ratchet strap points to meet the required legislation.
BC Lighting Arrangement
Every model ha sealed commercial quality light units that are recessed into the back rail of the trailer to improve protection. LED front marker lights are also a standard feature on all models.
Rear Crash Barrier
Standard on all models the crash barrier is formed from box section and can be folded away or removed if preferable.
BC Suspension
The normal suspension offered on our bale trailer range is our split-oscillating suspension, which reduces lateral movement and improves stability of high loads. Spring suspension, if preferred, is also available for high-speed road work as a no-cost option.
BC Axles & Braking
The standard axles on all our models are more than adequate for most jobs. However commercial 10 stud axles can be specified to provide high-speed performance and enhanced braking.
BC Tyres
It is possible to upgrade the tyres on our entire BC range to better handle different jobs. Tyres available include miniature super-singles, low and wide 445-45x19.5 tyres to reduce the bed height and a variety of floatation tyres. All tyre options can be "dealer fitted" except the low profile 445-45 x 19.5 or 355/50 x 22.5 tyres.

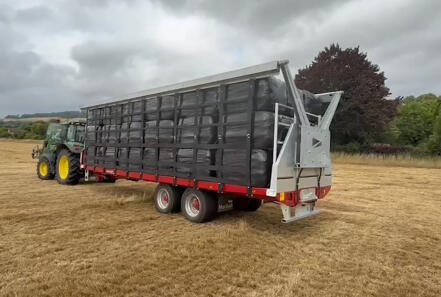

Easy Secure System
The Marshall Easy Secure System fits BC-25-12T models upwards and can be used for a variety of loads from bales to fertiliser bags and boxes. The system incorporates two hydraulically lifted bars that pull a pair of securing nets into place on either side of the trailer, reducing the need for strapping and further tying down of cargo. There are a number of benefits to this design, using nets instead of complicated steel frames reduces the chance of damage, the nets fold together when in the lowered position so the trailer can be moved or un-hitched, and the system works with more than just bales.
Paint Finish
Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish.
Delivery
Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners.
Spare Parts
Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives you peace of mind when buying a Marshall that you will be properly supported well into the future.

Specifications

Compare specifications

Basic Price [[ selectedProduct['price'] ]]
[[ standardLabels[index] ]] [[ spec ]]
Optional Equipment
[[ optionalLabels[index] ]] [[ spec ]]

Owner's Info

Retro Fit

Retro Fit Concept

Retro fitting involves upgrading existing equipment with new features or components to enhance performance and functionality.

At Marshall Trailers, we offer a range of retro fit solutions to improve your trailer's capabilities.
Whether you're looking to enhance safety, increase load capacity, or add modern conveniences, our retro fit solutions are designed to meet your specific needs.

445-45 x 19.5 (10 Stud) Low Wh
Image coming soon
Part No: 0026
Retro Fit: 1.hrs
Cost per unit: £1360.00
These low profile tyres perform very well on the road. In addition they lower the bed height of the trailer 150mm on bale trailers and 75mm on other trailers. This lowers the centre of gravity of the trailer improving stabuility. Please note all prices are in place of standard tyres.
445-45 x 19.5 (8 Stud) Low Wh
Image coming soon
Part No: 0025
Retro Fit: 1.hrs
Cost per unit: £1360.00
These low profile tyres perform very well on the road. In addition they lower the bed height of the trailer 150mm on bale trailers and 75mm on other trailers. This lowers the centre of gravity of the trailer improving stabuility. Please note all prices are in place of standard tyres.
560-60 x 22.5 (10 Stud) B Wh
Image coming soon
Part No: 0024
Retro Fit: 1.hrs
Cost per unit: £3130.00
These tyres excel at both on-road performance and off-road performance and are the best all-round tyres we offer. When this option is selected mudguards are fitted automatically. Please note all prices are in place of standard tyres.
560-45 x 22.5 (10 Stud) Wheels
Image coming soon
Part No: 0022
Retro Fit: 1.hrs
Cost per unit: £2530.00
These tyres excel at both on-road performance and off-road performance and are the best all-round tyres we offer. When this option is selected mudguards are fitted automatically. Please note all prices are in place of standard tyres.
560-45 x 22.5 (8 Stud) Wheels
Image coming soon
Part No: 0021
Retro Fit: 1.hrs
Cost per unit: £2530.00
These tyres excel at both on-road performance and off-road performance and are the best all-round tyres we offer. When this option is selected mudguards are fitted automatically. Please note all prices are in place of standard tyres.
550-45 x 22.5 (10 Stud) Wheels
Image coming soon
Part No: 0020
Retro Fit: 1.hrs
Cost per unit: £1840.00
These tyres are excellent in wet conditions and significantly reduce the ground compaction of the machine; ideal if the machine is predominantly used off-road. When this option is selected then mudguards are added automatically. Please note all prices are in place of standard tyres.
550-45 x 22.5 (8 Stud) Wheels
Image coming soon
Part No: 0019
Retro Fit: 1.hrs
Cost per unit: £1840.00
These tyres are excellent in wet conditions and significantly reduce the ground compaction of the machine; ideal if the machine is predominantly used off-road. When this option is selected then mudguards are added automatically. Please note all prices are in place of standard tyres.
Hitch Lock
Image coming soon
Part No: 1203
Retro Fit: .25hrs
Cost per unit: £98.00
Allows the machine to be secured against theft. Padlock is not included.
Rear Tow Hitch - Lights & Hyd
Image coming soon
Part No: 1201
Retro Fit: 2.hrs
Cost per unit: £325.00
Allows two machines to be towed together. Lighting and braking connections allow the second machine to be fully road legal.
No Harvest Ladders
Image coming soon
Part No: 1001
Retro Fit: .5hrs
Cost per unit: £0.00
Removes the standard harvest ladders so the trailer comes with no harvest ladders.
Harvest Ladders - Str/Ang (BC)
Image coming soon
Part No: 1003
Retro Fit: .5hrs
Cost per unit: £100.00
Swaps the standard straight rear ladder for an angled rear ladder.
Harvest Ladders - Str/Bar (BC)
Image coming soon
Part No: 1004
Retro Fit: .5hrs
Cost per unit: £150.00
Swaps the standard straight rear ladder for a bale bar.
Rear Toolbox
Image coming soon
Part No: 1701
Retro Fit: 2.hrs
Cost per unit: £155.00
An ideal place to keep straps and ropes during journeys. Complete with a strap-winder for tidying up straps quicker.
Side Toolbox - NS
Image coming soon
Part No: 1702
Retro Fit: 2.hrs
Cost per unit: £155.00
An ideal place to keep straps and ropes during journeys.
Side Toolbox - OS
Image coming soon
Part No: 1703
Retro Fit: 2.hrs
Cost per unit: £155.00
An ideal place to keep straps and ropes during journeys.
Rear Crash Barrier (Container)
Image coming soon
Part No: 1102
Retro Fit: 1.hrs
Cost per unit: £0.00
The rear crash barrier is changed to allow lights to be mounted lower so they are visible when a container is fitted to the trailer.
Front Mudflaps
Image coming soon
Part No: 1402
Retro Fit: 1.hrs
Cost per unit: £145.00
These reduce the spray from the tractor wheels from hitting the underside of the trailer, reducing wear and protecting the trailer.
Rear Ramp Bar (BC,HD)
Image coming soon
Part No: 2602
Retro Fit: 1.hrs
Cost per unit: £200.00
Adds a rear ramp bar to allow ramps to be hooked on to the trailer.
Rear Ramps
Image coming soon
Part No: 2601
Retro Fit: 1.hrs
Cost per unit: £1700.00
Aluminium ramps that can carry 6.8 tons, suitable for loading small machines.
Rear Pushing Bar
Image coming soon
Part No: 2733
Retro Fit: 3.hrs
Cost per unit: £800.00
Adds an assembly with a rubber bumper for the trailer to be pushed in the event it becomes stuck.
Hyd. Side Walkway - Nearside
Image coming soon
Part No: 2726
Retro Fit: 7.hrs
Cost per unit: £1462.00
Allows safe access to boxes during loading.
Easy Secure - Bale Clamp 2.3m
Image coming soon
Part No: 2720
Retro Fit: 10.hrs
Cost per unit: £10050.00
Allows loads to be quickly secured without the need for straps or ropes. From the bed of the trailer to the top of the securing bar measures 2.3m.
Hydraulic Jack
Image coming soon
Part No: 2716
Retro Fit: 1.hrs
Cost per unit: £600.00
The machine is fitted with a hand operated hydraulic jack to allow it to be used with a tractor without a pick-up hitch.
Hyd. Side Walkway - Offside
Image coming soon
Part No: 2704
Retro Fit: 7.hrs
Cost per unit: £1462.00
Allows safe access to boxes during loading.
Rear Box Pusher
Image coming soon
Part No: 2703
Retro Fit: 4.hrs
Cost per unit: £950.00
Useful for ensuring a load of boxes are secured for travelling.
Number Plate Bracket & Light
Image coming soon
Part No: 2402
Retro Fit: 1.hrs
Cost per unit: £75.00
Allows your number plate to be better displayed and to be easily changed.
LED Beacon
Image coming soon
Part No: 2404
Retro Fit: 1.hrs
Cost per unit: £145.00
Improves the visibility of the machine, particularly important if the machine is to be frequently used on the road.
