Features at a Glance

• A 60° tip angle (ensures safe and efficient discharge of any load)
• Elevated rear tipping point allows loads to be easily heaped up
• Optional hydraulic door that can be ordered from new or "dealer fitted" at a later date without any paint rectification or fabrication
• Fully integrated rear LED lights positioned to avoid damage from the discharging load
• 8mm rock floor and 5mm sides limit the potential damage to the body
• Twin two stage ram allows for a more stable tip
• Oscillating split tandem axle significantly increases stability over a spring type suspension
• Genuine Marshall Spares – a full collection of spares are available for all models in the range

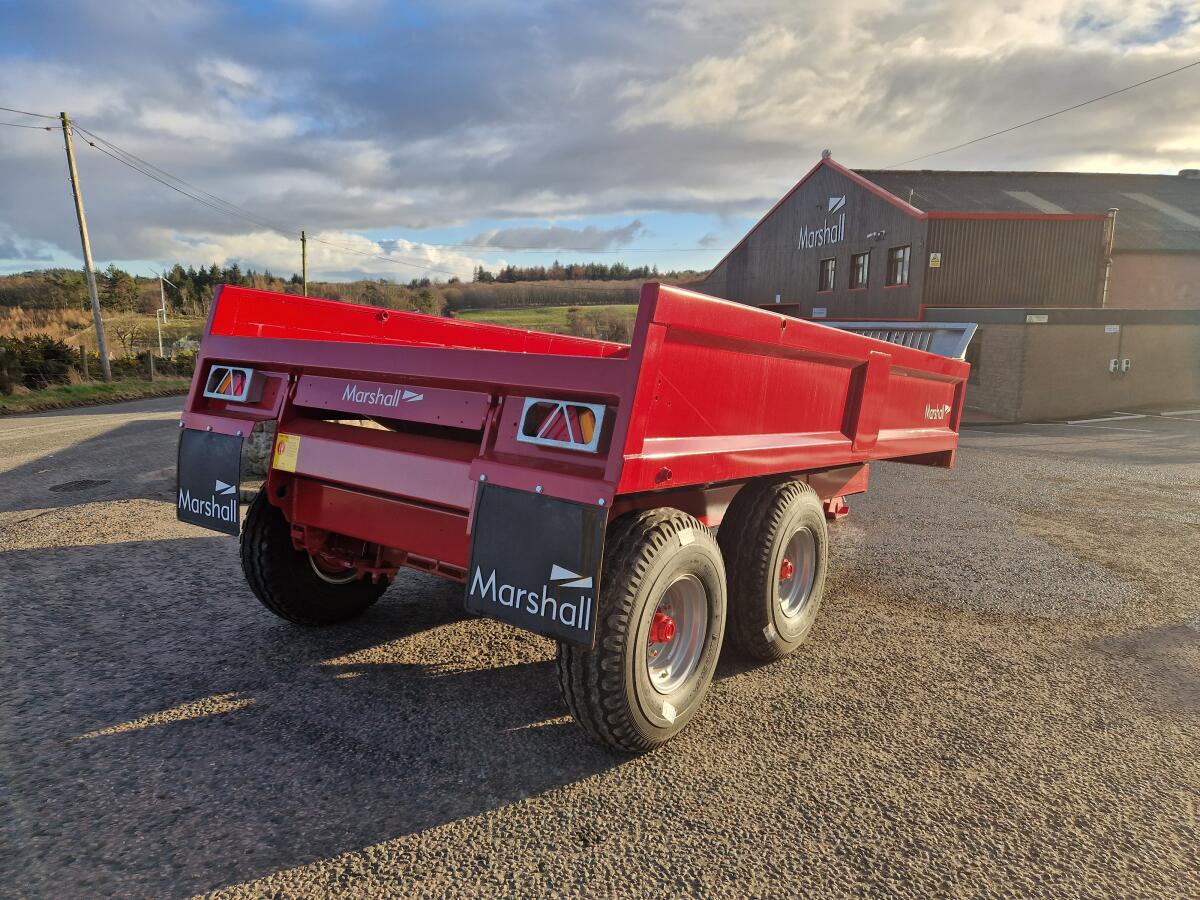

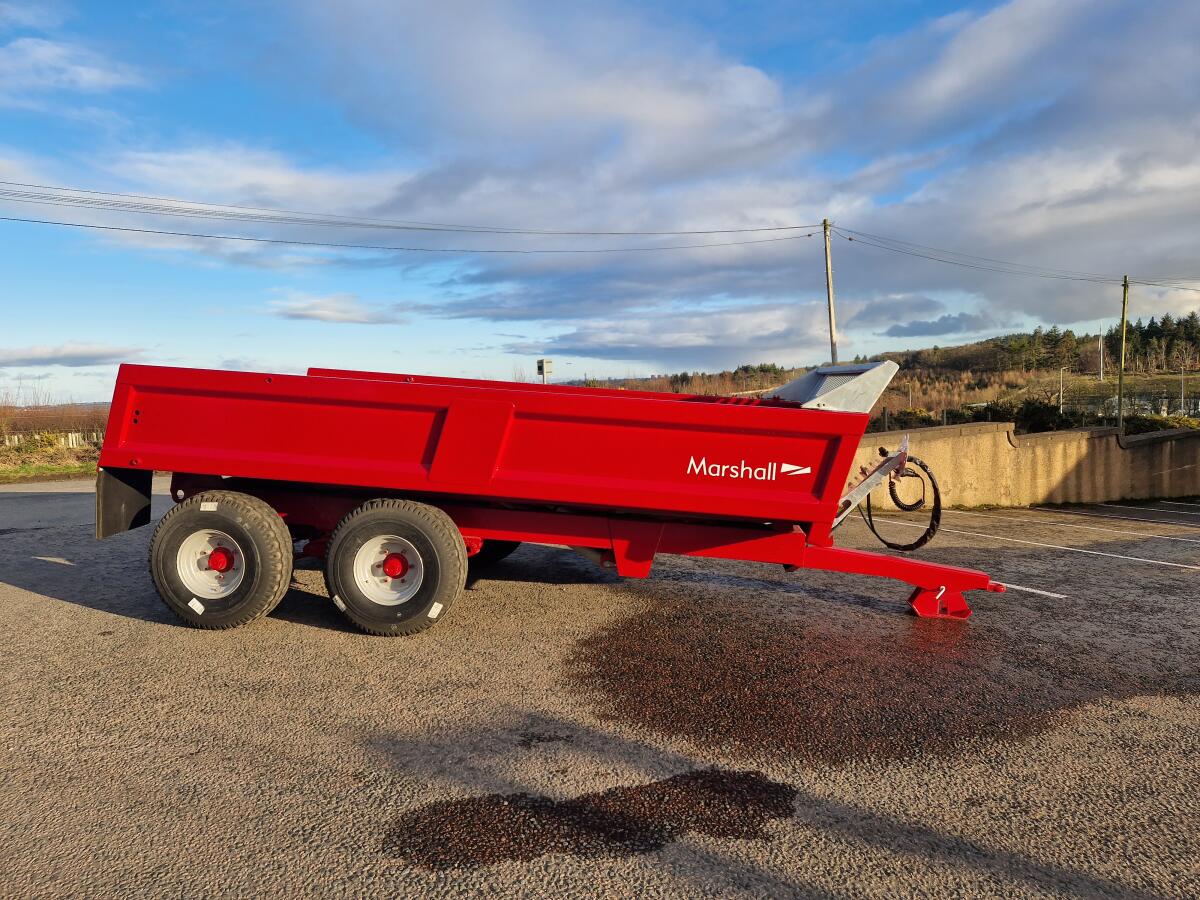

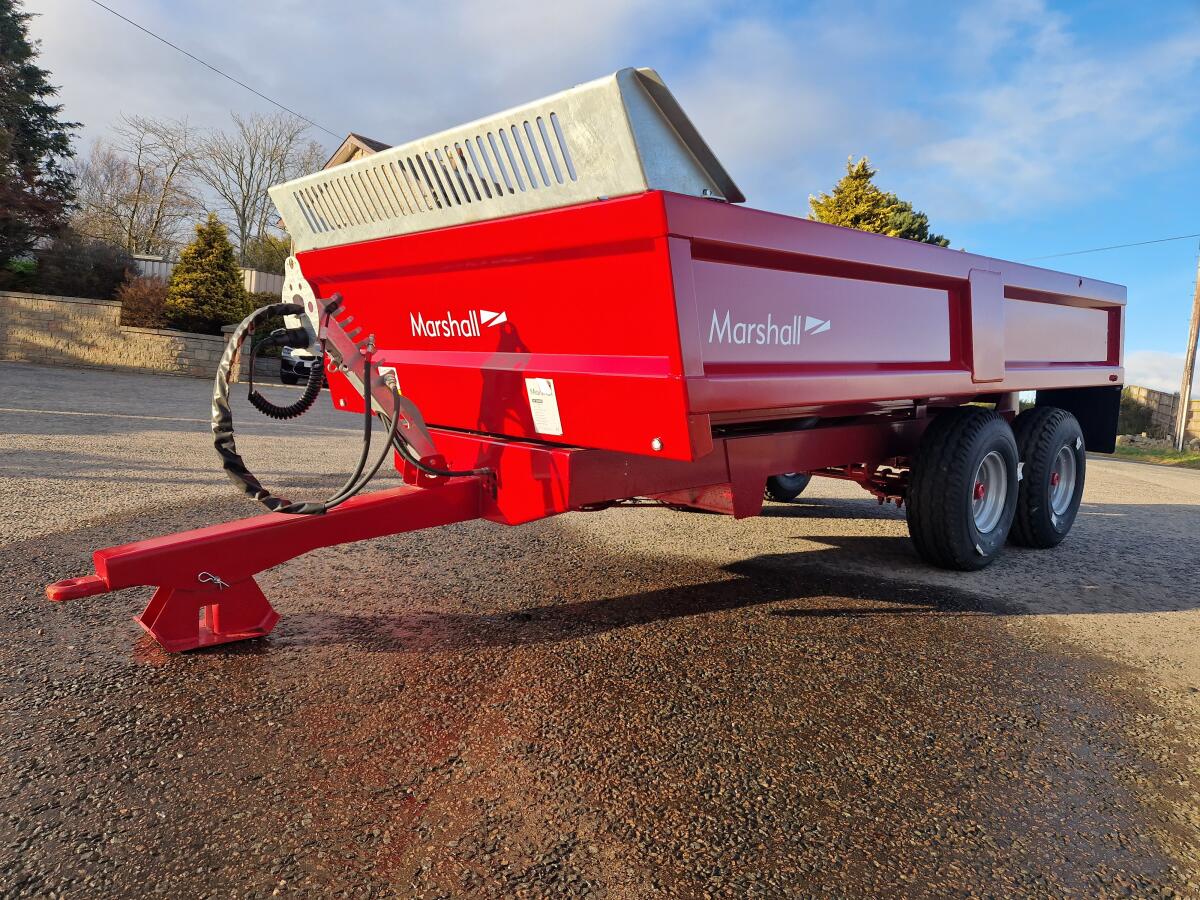

The Marshall HD/8 hybrid dumper is a heavy-duty dumper that is designed to handle the toughest jobs in quarries, construction sites or even farms.

It has a 6mm floor and 5mm sides, which provide an extremely robust body that can cope with carrying rocks and other heavy loads that could potential damage a lighter trailer. The body of the trailer is formed from heavy-duty pressed steel sheets reinforced with a generous number of bearers that further enhances the strength of the body. The HD/8 comes with a tapered rear-end as standard and elevated tipping point, providing the dual benefits of easy loading and the heaping of loads when discharged. To further enhance the trailer’s strength the tipping points use a 24mm high tensile bolt to maximise service life.

The chassis on this model uses our tried and tested design perfected over 60 years of trailer manufacturing, providing excellent strength and stability. The HD/8 also has a high tipping angle of 60 degrees guaranteeing loads are safely and efficiently discharged. The tandem axle design of this model allows it to be fitted with oscillating split tandem suspension to provide excellent stability. On top of this all our dumpers are fitted with lights and hydraulic brakes as standard ensuring that they meet all health and safety regulations.

The standard quality Marshall build and the tandem axle design means the HD/8 can tackle many of the jobs that larger trailer would typically handle; substantially increasing its usefulness to customers.

Retro fitting involves upgrading existing equipment with new features or components to enhance performance and functionality.

At Marshall Trailers, we offer a range of retro fit solutions to improve your trailer's capabilities.
Whether you're looking to enhance safety, increase load capacity, or add modern conveniences, our retro fit solutions are designed to meet your specific needs.
